Name: Remote Control with Automatic Wire Rope Organization 2000m Surface Exploration Drilling Rig
Brand: Jiangsu Sinocoredrill Exploration Equipment Co., Ltd
SKU: CR15
Price: 769.00 USD
Availability: InStock

خانه محصولات دکل حفاری هسته

Remote Control with Automatic Wire Rope Organization 2000m Surface Exploration Drilling Rig

جزئیات محصول:

محل منبع:	ووشی، چین
نام تجاری:	SINOCOREDRILL
گواهی:	ISO9001
شماره مدل:	CR15
سند:	SPECIFICATION OF Surface Co...15.pdf

پرداخت:

مقدار حداقل تعداد سفارش:	n/a
قیمت:	Based on detailed order
زمان تحویل:	1 ماه
شرایط پرداخت:	t/t

مخاطب

توضیحات محصول جزئیات

مدل:	CR15	مارک:	سینوکودریل
حداکثر ظرفیت حفاری:	2050 میلیون	روش حفاری:	سطح
گواهی:	CE؛ ISO9001	مکان مبداء:	ووکسی، چین
برجسته کردن:	CR15 2050M core drill rig,surface core drill rig with remote,core drill rig with warranty , surface core drill rig with remote , core drill rig with warranty

Remote Control with Automatic Wire Rope Organization 2000m Surface Exploration Drilling Rig

Product Attributes

Attribute	Value
Model	CR15
Brand	SINOCOREDRILL
Max drilling capacity	2050M
Drilling method	Surface
Certificate	CE; ISO9001
Place of origin	WUXI, CHINA

Product Description

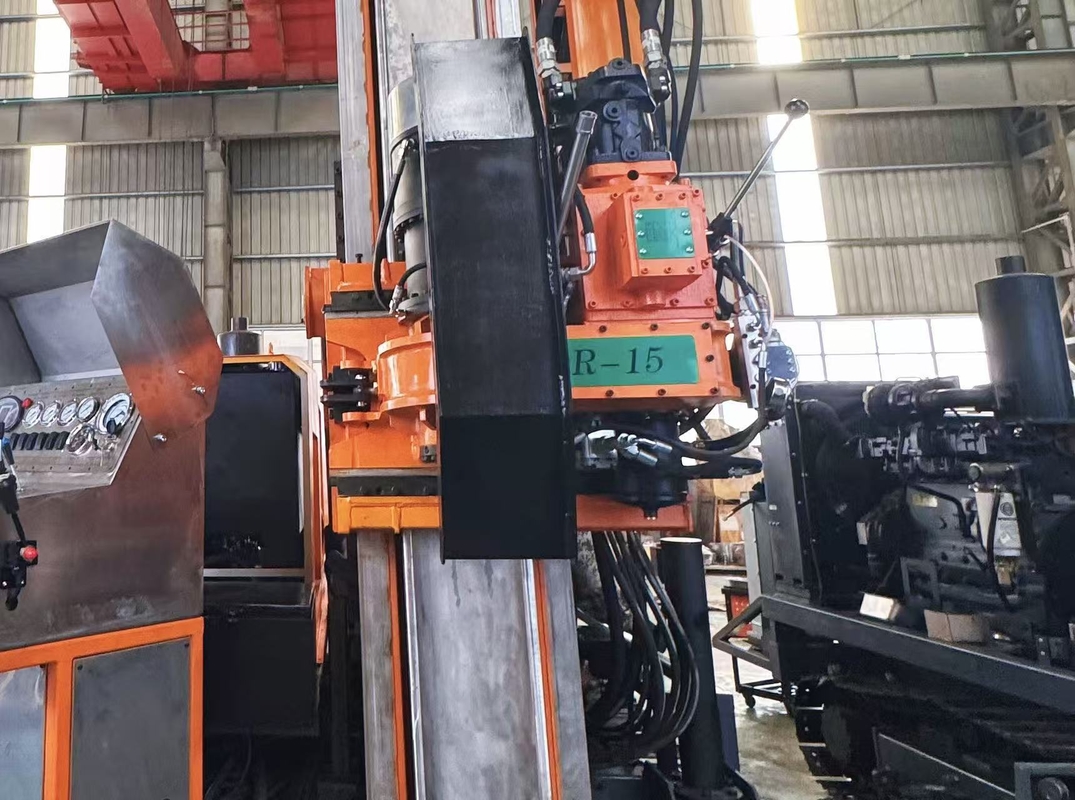

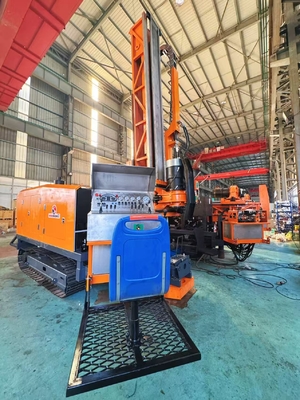

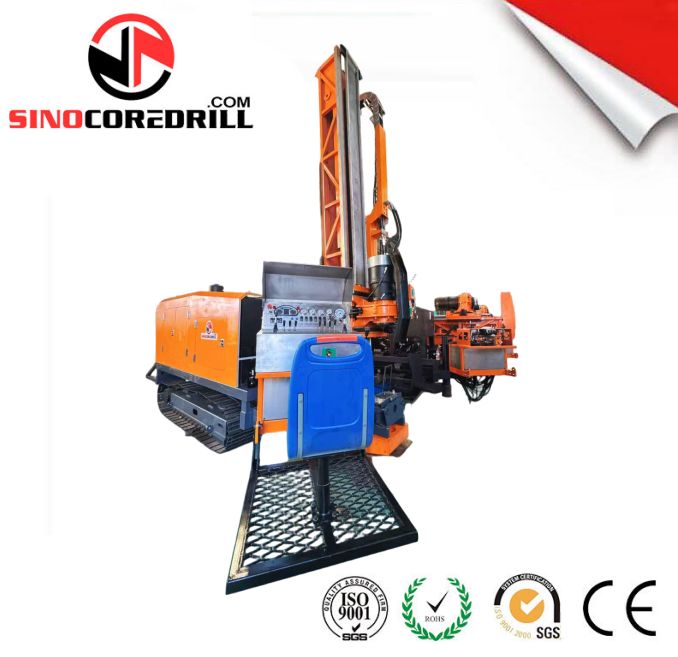

The CR15 Full Hydraulic Surface Core Drilling Rig is a top-tier equipment designed for efficient and precise drilling operations. Equipped with state-of-the-art hydraulic systems, it delivers superior power and control for various drilling applications.

Key Features

Robust construction for durability in tough drilling conditions
Compact design for easy transportation and setup in remote locations
Full hydraulic system for smooth operation and precise control
Telescopic mast adjustable for drilling depths up to 1500 meters
Hydraulic leveling system for stability on uneven terrain
Comprehensive safety features including emergency stop buttons and safety interlocks
Operator cabin for safe and comfortable working environment
Easy maintenance with accessible components

Technical Specifications

Diesel Engine: WP6G240E330 (EU Stage IIIA)/6.7L, 176 kW (240HP) at 2200rpm

Drilling Capacity

Type	Capacity
BQ	2050 m
HQ	1350 m
NQ	1650 m
PQ	950 m

Drill Head Specifications

Component	Specification
Rotation Motor	Two-speed Hydraulic Motor
RPM	Three Shifts Step-less Change: 0-1250 RPM
Head Opener	600 MM
Hydraulic Chuck (PQ)	Hydraulically opened Axial Holding Capacity of 243000 N
Max. Torque	6200 N*m
Hold Diameter	121 mm
Max. Lifting capacity of Spindle	235 kN
Max. Feeding Power	80 kN
